DEV1

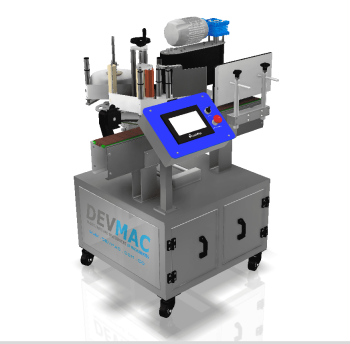

DEV – ET1DC

ADHESIVE LABEL APPLICATION FOR CYLYNDRICAL CONTAINERS

The DEV – ET1DC reference is ideal for stick adhesive labels on cylindrical containers of plastic, glass and cans. It can stick labels up to 20 cm high, and reach speeds of 7000 units per hour. The interaction between the machine and the operator is carried out through a touch screen of 7’’ full color. The control is use through of PLC. Besides, includes recipes for easy label configuration of various containers references.

EQUIPMENT

  • The dispensing of these equipment’s is a modern and robust design, controlled by a PLC and a HMI that has the capacity to manage recipes to be able to store in memory the operating values of different products, which speeds up the change of format between the different packages or presentations.
  • The equipment has a conveyor belt of up to 1,20 meters in length, for that it can have an independent label or integrate into an existent production line. That belt also allows the installation of additional components to improve the production performance, such as: INKJET machine, among others.
  • The dispensing presents two engine options, one of them is through a stepper motor or with a servo motor if the application it is more robust.
  • It has a label sensor that is configure via TECH buttons, this guarantees an easier calibration and agility in the starting process.
  • Parameterization of servomotor and speed shifter, of the side band are done through a touch screen; we make this doing a communication MODBUS RTU between components. The above is cutting-edge technology.

IDEAL FOR

  • Food (oil, dairy drinks, condiments, canned food, among others.)
  • Drinks (water, non-carbonated drinks like tea, refreshments, carbonated drinks like soda, flavored water with gas, among others.)
  • Cleaning Products
  • Natural Products
  • Alcoholic Drinks (Beers, wine, champagne, bases, among others.)
  • Cosmetics
  • Lubricants
  • Pharmaceutical
  • Paints
  • Agrochemicals

NOT IDEAL FOR

This equipment it is not suitable to stick labels in non-cylindrical containers (oval or flat), neither is use to stick two labels in the same container. In these cases, consult the references offer by DEVMAC for an optimal solution of these applications.
